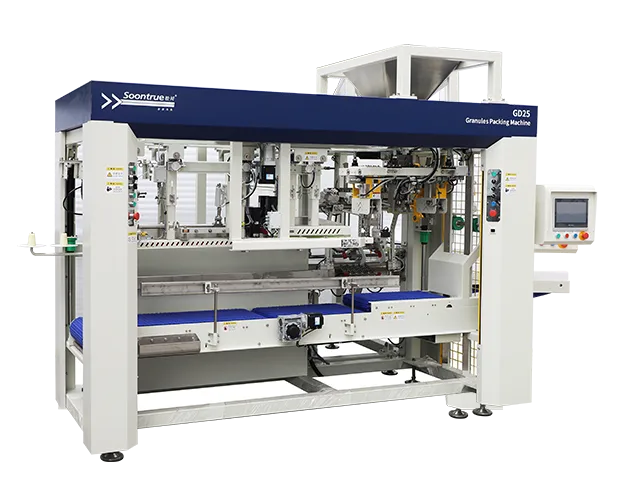

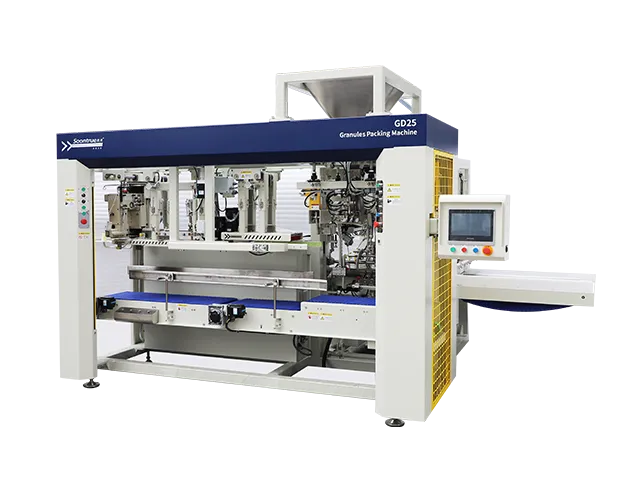

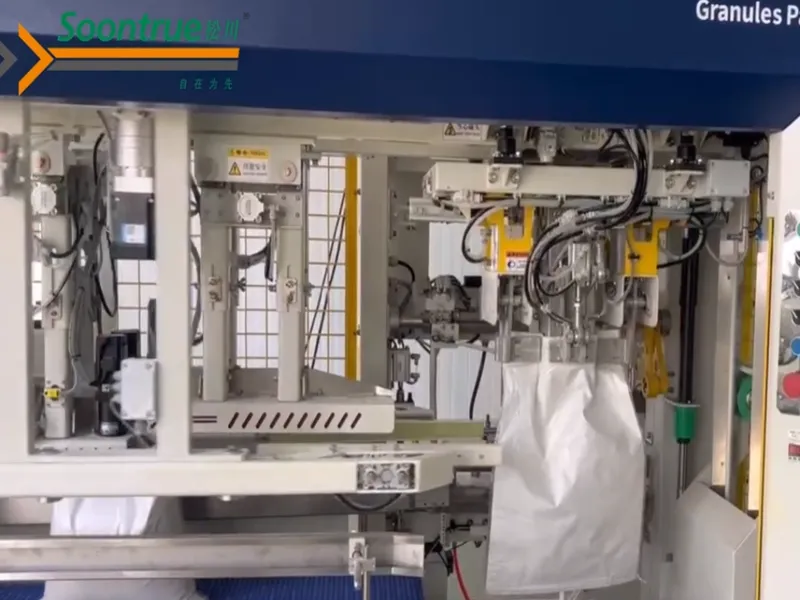

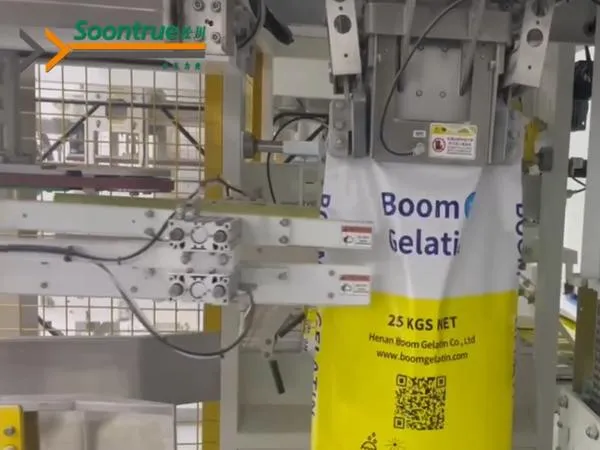

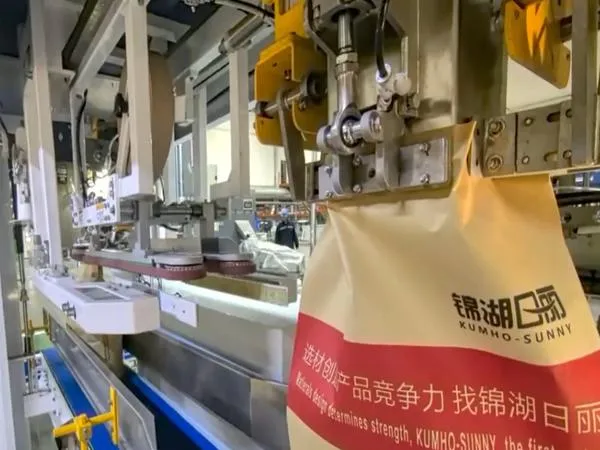

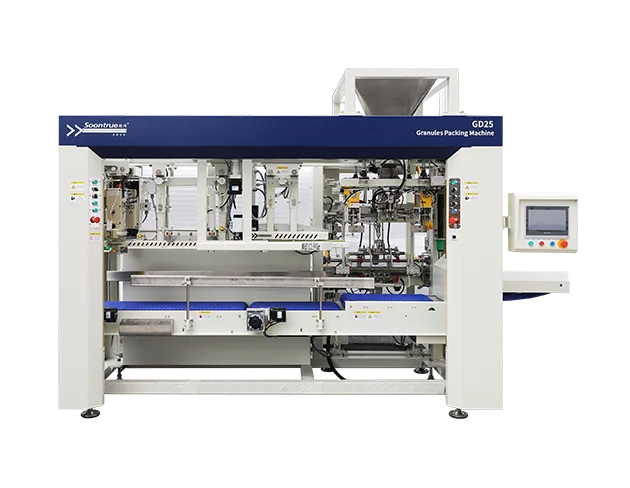

Designed for packaging granular, powdered, and crystalline materials that are prone to flow, this equipment uses pre-made bags as the packaging medium. It integrates core functions such as automatic bag feeding, bag opening, quantitative filling, and rapid sealing, perfectly adapting to the characteristics of free-flowing materials. Widely applicable for bulk packaging in industries like feed, grain, and rubber pellets,plastic pellets, it helps enterprises achieve cost reduction and efficiency improvement.
Performant
Servo motors ensure fast, consistent bag handing, filling
HMI with one-touch automatic bag-size changeover
Rapid commissioning and start-up
Precise
Adjustable spout opening to accommodate various bag sizes Bag detection on the filling spout to prevent spillage without interrupting the bagging process
Bag detection on the filling spout to prevent spillage without interrupting the bagging process
Safe and ergonomic
Bag magazine with multiple stacks for greater autonomy
Height adjustable conveyor
Large access doors for easy cleaning and maintenance
Separated power and control cabinets with air conditioning
Independent power supply and control cabinet
Various weighing scales available for different applications
Dust-proof spout with dust collection system
Compatible with any sealing and sewing machine
Integrated printing & labeling system
Bag inverting & turning conveyor for filling
Weight-checking conveyor
Metal-detection conveyor
Speed:
up to 18 bags per minute (1080 per hour)*
Bulk materials:
granules and powders
Packaging accuracy:
2‰
Bag width:
300-550mm
Bag longth:
500-900mm
Bag types:

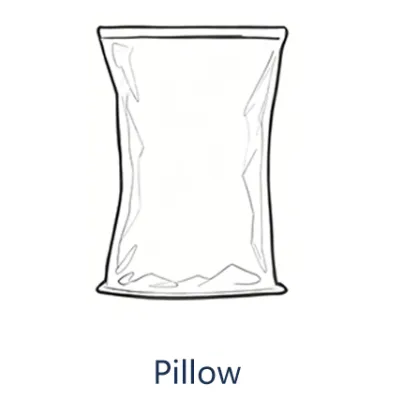

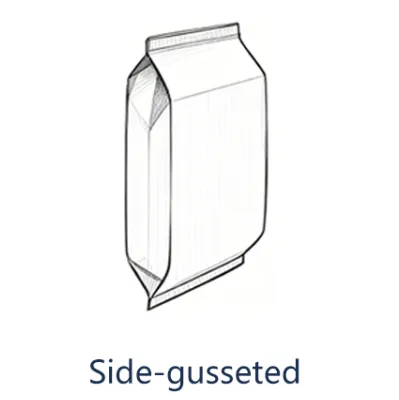

pillow, and block bottom
Bag materials:
Laminated woven bags,coated woven bags, composite woven bags,woven bag with inner liner,kraft paper bags, PE bags, aluminum foil bags
Bag weight:
10 to 25 kg
Bag magazine capacity:
up to 300 bags
Typical footprint:
LxWxH(3700x2300x6000 mm)
Compressed air:
>0.6MPa
Gas consumption:
0.6m³ / minute
Power:
15Kw
Electrical requirement:
380 V / 3Ph / 60 Hz
Operating temperature:
5 °C to 35 °C
