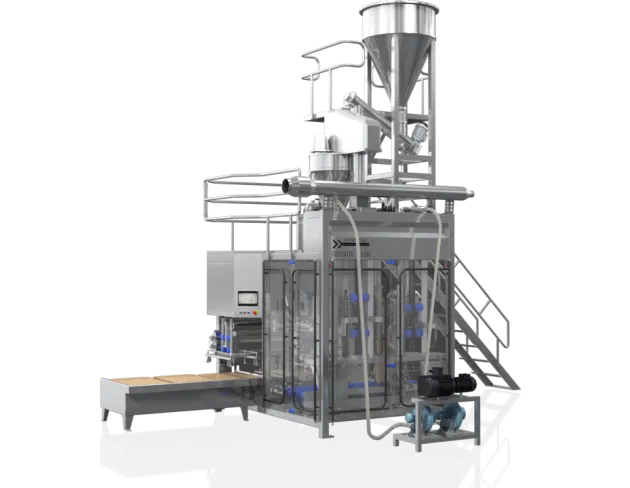

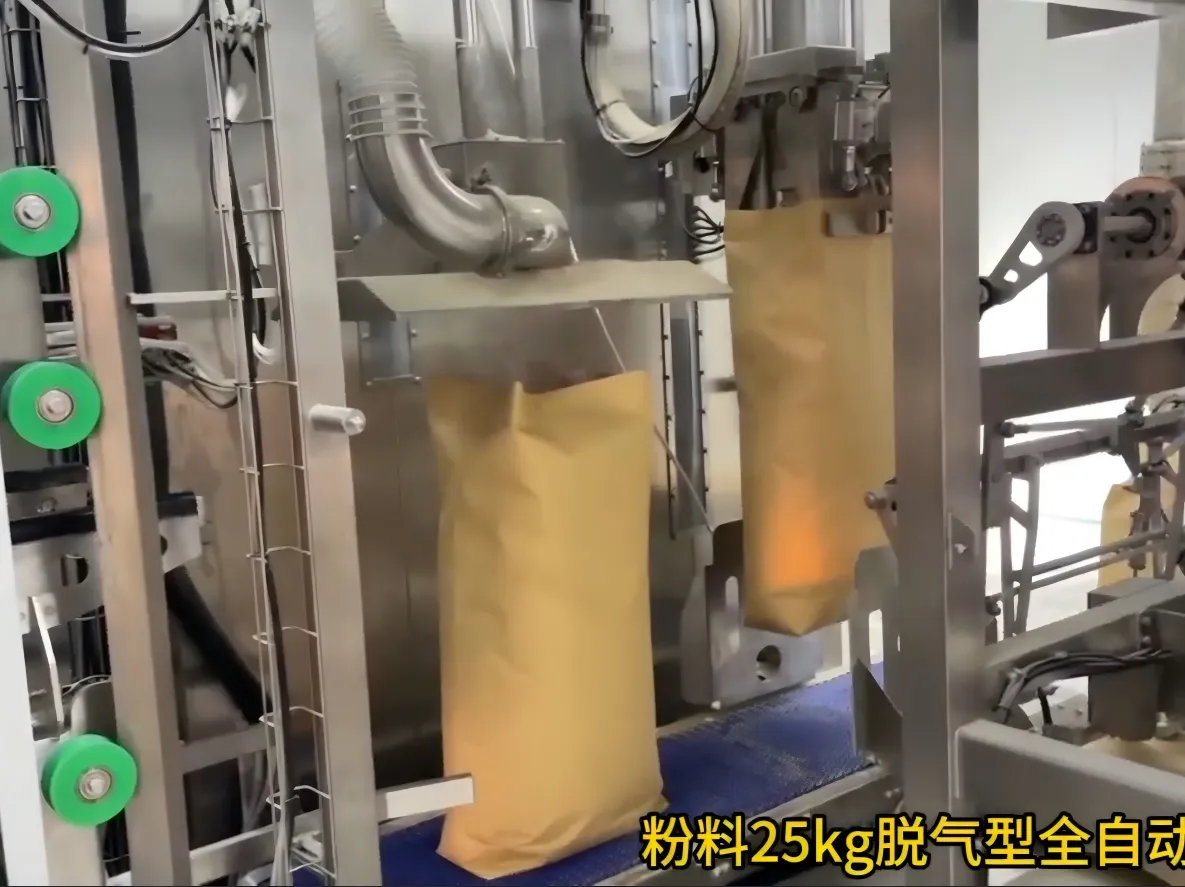

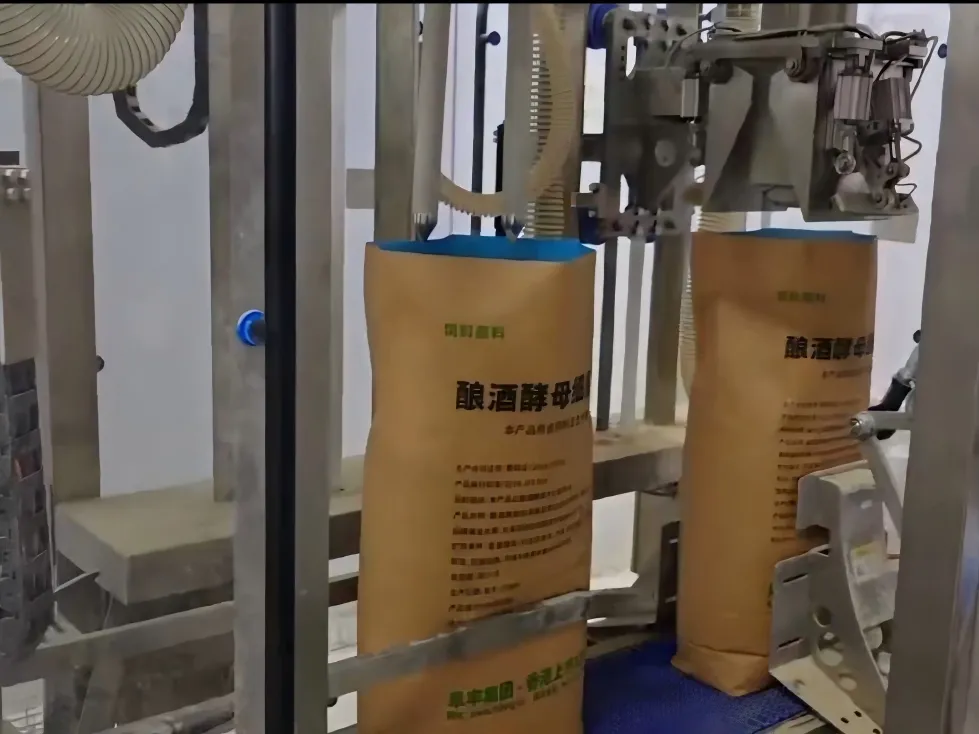

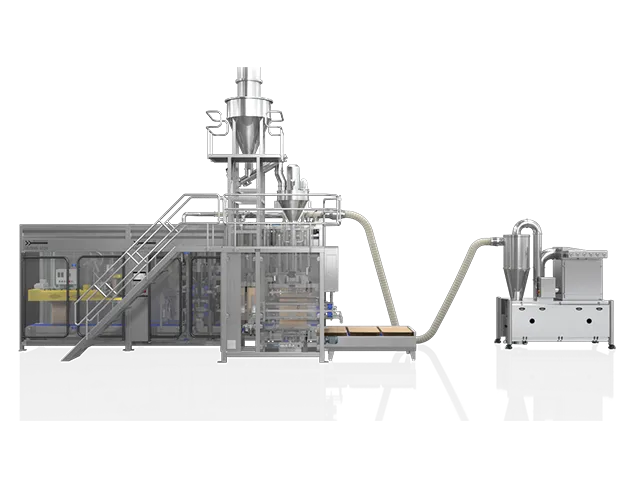

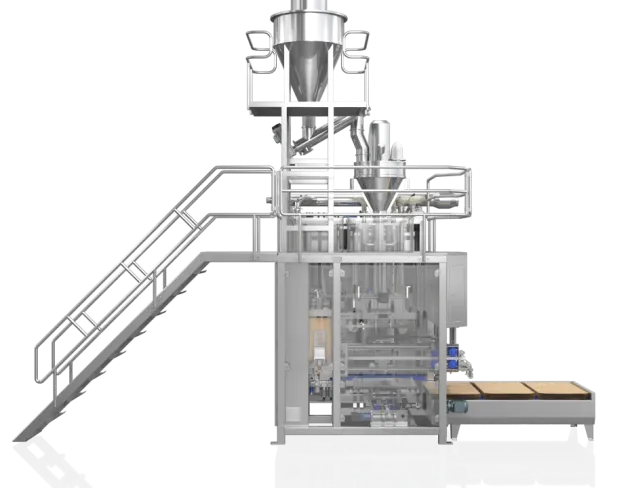

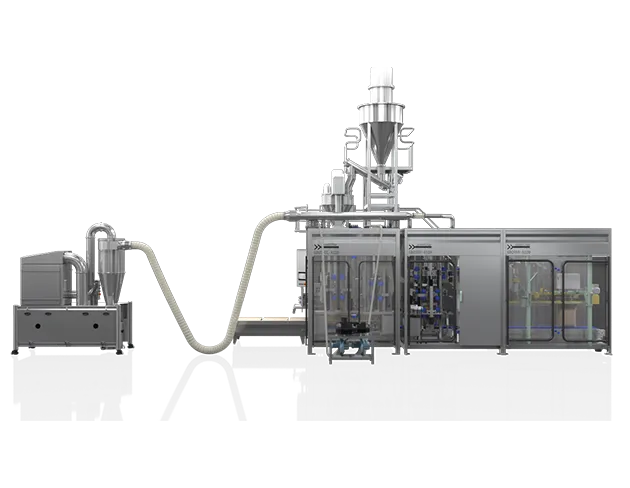

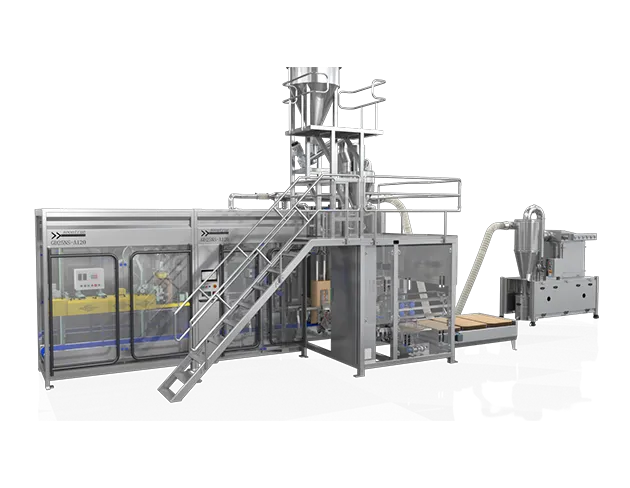

The GD25DT is specifically designed for materials with high dust content. It adopts a bottom filling structure, which effectively prevents dust from flying at the source and significantly improves the production environment and operational cleanliness. The equipment supports multiple sealing forms for selection, allowing for flexible switching according to different packaging requirements. It balances sealing performance and aesthetics, and can stably adapt to continuous production under high dust conditions.
Performant
Servo motors ensure fast, consistent bag handing, filling
HMI with one-touch automatic bag-size changeover
Rapid commissioning and start-up
Precise
The dust collection and treatment effect is extremely good.
Bag detection on the filling spout to prevent spillage without interrupting the bagging process
Bag magazine with multiple stacks for greater autonomy
Large access doors for easy cleaning and maintenance
Separated power and control cabinets with air conditioning
Independent power supply and control cabinet
Dust-proof spout with dust collection system
Compatible with any sealing and sewing machine
Integrated printing & labeling system
Bag inverting & turning conveyor for filling
Weight-checking conveyor
Metal-detection conveyor
Speed:
up to 2 bags per minute (120 per hour)*
Bulk materials:
powders
Packaging accuracy:
2‰
Bag width:
500-600mm
Bag longth:
700-1100mm
Bag types:
pillow, and block bottom
Bag materials:
paper, PE, paper-plastic compound bag and Aluminum foil bag
Bag weight:
10 to 25 kg
Bag magazine capacity:
up to 300 bags
Typical footprint:
LxWxH(6289 x 2670 x 3616 mm)
Compressed air:
>0.6MPa
Gas consumption:
0.5m³ / minute
Power:
15Kw
Electrical requirement:
380 V / 3Ph / 60 Hz
Operating temperature:
5 °C to 35 °C
*Depending on bag thickness and number of bag piles
*Depending on the application, bag characteristics, and machine configuration
