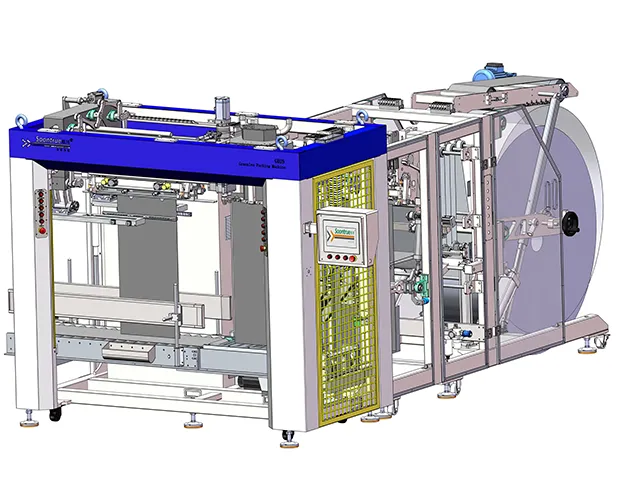

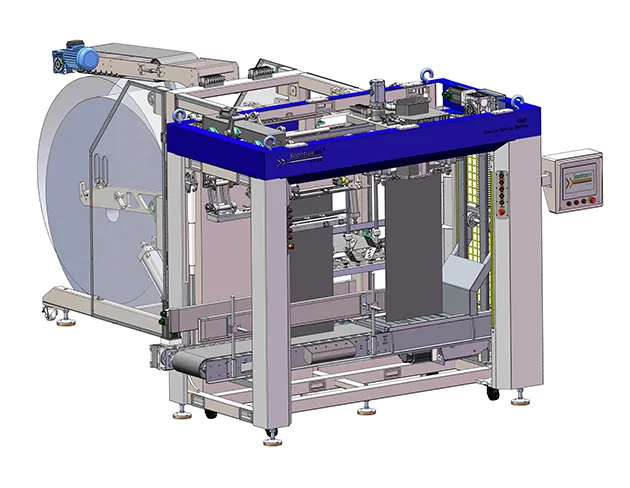

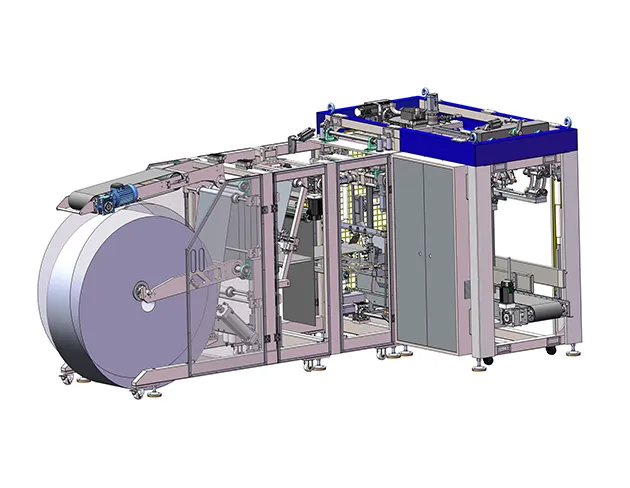

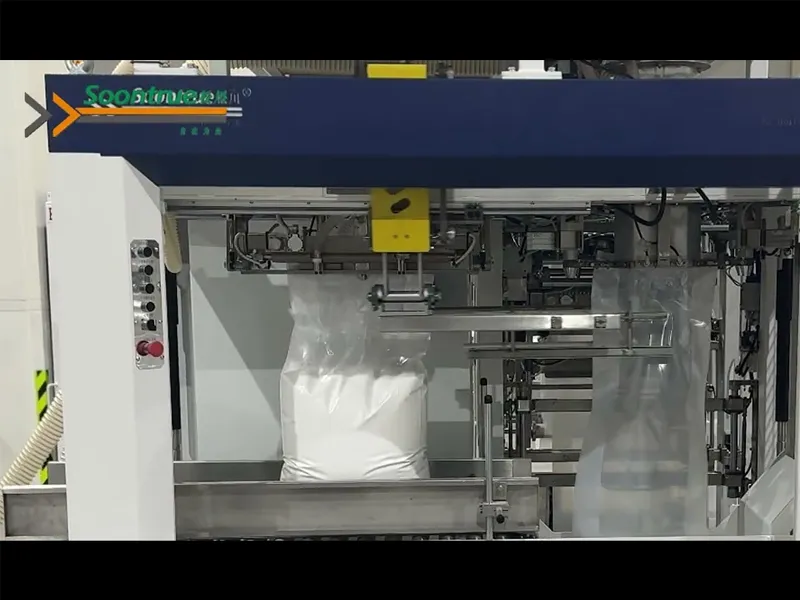

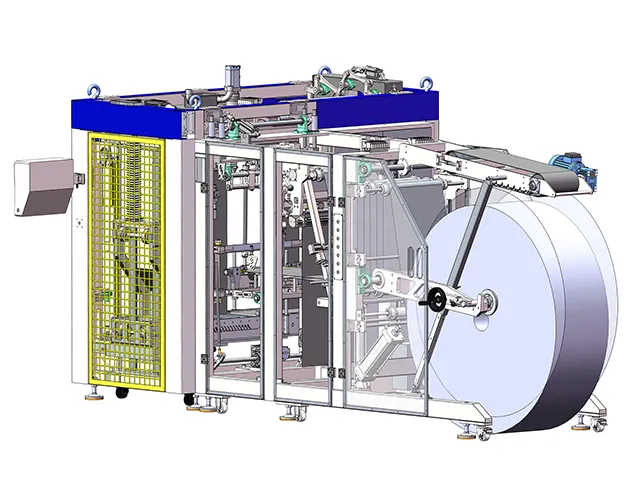

GD25 adopts a dual-screw (large/small) metering and feeding system, with an automatic degassing rod extending to the bottom of the bag for vacuum degassing. The bag mouth is equipped with a dust removal device, achieving a completely dust-free packaging process throughout.
Suitable for pharmaceutical additives, food additives, and other materials.
Speed:
up to 5 bags per minute (Powder)
up to 15 bags per minute (granular)
Bulk materials:
granules and powders
Packaging accuracy:
2‰
Bag width:
350-600mm
Bag longth:
550-1000mm
Bag types:
tubular film
Bag materials:
PE, PP, aluminum PP
Bag weight:
10 to 50 kg
Film roll:
Diameter:
Internal core:
Typical footprint:
LxWxH( x x mm)
Electrical requirement:
380 V / 3Ph / 60 Hz
Operating temperature:
5 °C to 40 °C
